MCR200 EMV Smart IC Chip Card and Magnetic Stripe Card Reader and Writer
We sell all EMV software for this MCR200 + Java cards in our shop here, feel free to look around and ask us questions.
In-Depth Features and Technical Specifications
The MCR200 stands out for its dual-functionality in a portable form factor (roughly the size of a small external hard drive, easy to place on a desk). Key technical highlights include:
- Magnetic Stripe Capabilities:
- Reads and writes up to three tracks (Track 1, 2, and 3) in ISO and IBM formats.
- Supports low-coercivity (LoCo, ~300 Oe) and high-coercivity (HiCo, up to ~4000 Oe) stripes.
- Manual single-pass swipe mechanism for reliable data capture/encoding.
- Compatible with standard credit/debit cards, gift cards, membership cards, and passbooks.
- EMV Smart IC Chip Support:
- Compliant with PBOC 2.0 and EMV IC card standards (primarily contact-based ISO 7816 interface).
- Capable of interacting with CPU-based smart cards (e.g., Java cards like J2A040).
- Allows reading card data, writing APDU commands, and programming dynamic elements (with compatible software).
- Hardware Design:
- Compact and durable build with imported components for reliability.
- Tri-color LED indicators (power, read, write) plus audible beeper feedback.
- Module-based structure for efficiency and longevity (magnetic head rated for ≥1,000,000 swipes).
- Expansion ports: PIN pad interface and dual serial port expanders for custom integrations.
- Connectivity and Power:
- Primary interface: RS232 (with included cable; often adapted to USB via converter).
- Power: 24V DC adapter (included) for stable operation during intensive writes.
- Software Ecosystem:
- Basic magnetic stripe drivers and utilities typically included on CD (for Windows legacy versions; some modern drivers available).
- EMV/chip writing requires separate, often custom or third-party software (e.g., versions marketed as “v8.6” or similar cloning tools).
- SDKs sometimes bundled for developers to build custom applications.
The device excels in scenarios requiring programmable cards, such as testing payment terminals, encoding access badges, or prototyping loyalty systems.

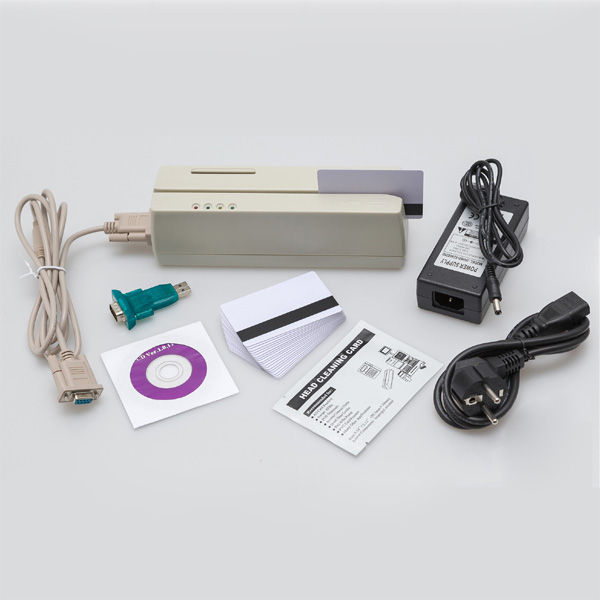

What’s in the Box: Standard MCR200 EMV Smart IC Chip Package
A typical retail or online purchase includes:
- 1 × Brand New MCR200 unit
- 1 × CD with drivers and basic magnetic software
- 1 × Magnetic head cleaning card (essential for maintenance)
- 1 × RS232 connection cable
- 1 × 24V DC power adapter
- 1 × AC power cable
- 2 × J2A040 40K Java blank smart cards (for testing/encoding)
This all-in-one kit minimizes setup time, though users often source additional blank cards or advanced software separately.
Legitimate Applications and Use of MCR200 EMV Smart IC Chip Card and Magnetic Stripe Card Reader and Writer
In professional settings, devices like the MCR200 serve valid purposes:
- Banking & Financial Testing — Encoding test cards for ATM/POS validation, compliance checks, or internal training.
- Retail & Loyalty Programs — Programming gift cards, membership cards, or promotional tokens with custom data.
- Access Control & Security — Writing employee badges, hotel key cards, or transit passes (magnetic or chip-based).
- Development & Prototyping — Software developers use it with SDKs to simulate EMV transactions or debug payment integrations.
- Educational/Research — Universities or labs studying payment security, cryptography, or smart card protocols.
These uses require proper authorization, compliance with PCI DSS or local regulations, and legitimate data sources. Manufacturers position it as a “multifunctional reader” for such environments.
Setup and Operation Guide (Step-by-Step)
- Hardware Connection — Plug in the power adapter (24V DC) and connect RS232 cable to a PC (use USB-RS232 adapter if needed). Install drivers from the included CD.
- Magnetic Stripe Mode — Swipe card through slot; use provided software to read/encode Tracks 1-3. Adjust coercivity settings as needed.
- EMV Chip Mode — Insert smart card into contact reader slot. With compatible EMV software, send APDU commands to read/write data (e.g., personalize Java cards).
- Maintenance — Run cleaning card periodically to prevent read errors; avoid excessive force on swipe mechanism.
- Software Customization — For advanced EMV functions, integrate third-party tools or SDKs—ensure compatibility with your OS (Windows preferred; limited Linux support).
Always back up data and test on blank cards first.
Critical Risks, Legal Limits, and Ethical Boundaries
While the MCR200 hardware is legal to own in many places as a development tool, its marketing and common use cases cross into prohibited territory. Sellers frequently promote it for “writing Track 1/2/3 and chip credit cards,” often alongside “EMV software” and blank Java cards—explicitly for cloning stolen card data (“dumps”) into programmable chips. MCR200 EMV Smart IC Chip
- Illegal Activities — Using the device to encode stolen magnetic stripe or EMV data onto blank cards constitutes access device fraud, wire fraud, identity theft, and counterfeiting under laws like U.S. 18 U.S.C. § 1029 (up to 15 years prison), EU computer crime directives, or French anti-fraud statutes.
- Penalties — Possession with intent to defraud (evidenced by software/marketing) can lead to felony charges, fines, asset seizure, and international prosecution.
- Real-World Context — Card skimming and cloning cause billions in annual losses; devices like this fuel ATM/POS fraud networks targeted by FBI, Secret Service, and Europol.
- Ethical Note — Even “testing” with unauthorized dumps risks severe consequences. Legitimate users must source data ethically (e.g., their own test cards). MCR200 EMV Smart IC Chip
Security Recommendations and Alternatives of MCR200 EMV Smart IC Chip Card and Magnetic Stripe Card Reader and Writer
For legitimate needs:
- Use certified, vendor-supported tools (e.g., from HID, Identiv, or ACS) for access control or development.
- Prefer contactless/RFID writers or modern USB smart card readers with open SDKs.
- Enable multi-factor authentication and tokenization in payment systems to reduce reliance on magstripe/chip cloning.
For consumers worried about fraud: Monitor statements, use contactless payments, enable alerts, and report suspicious devices.
In summary, the MCR200 offers robust hardware for magnetic and EMV card interactions—but its prevalence in illicit markets overshadows any benign applications. Approach with extreme caution, prioritize legal compliance, and seek professional alternatives for security-sensitive tasks. MCR200 EMV Smart IC Chip
